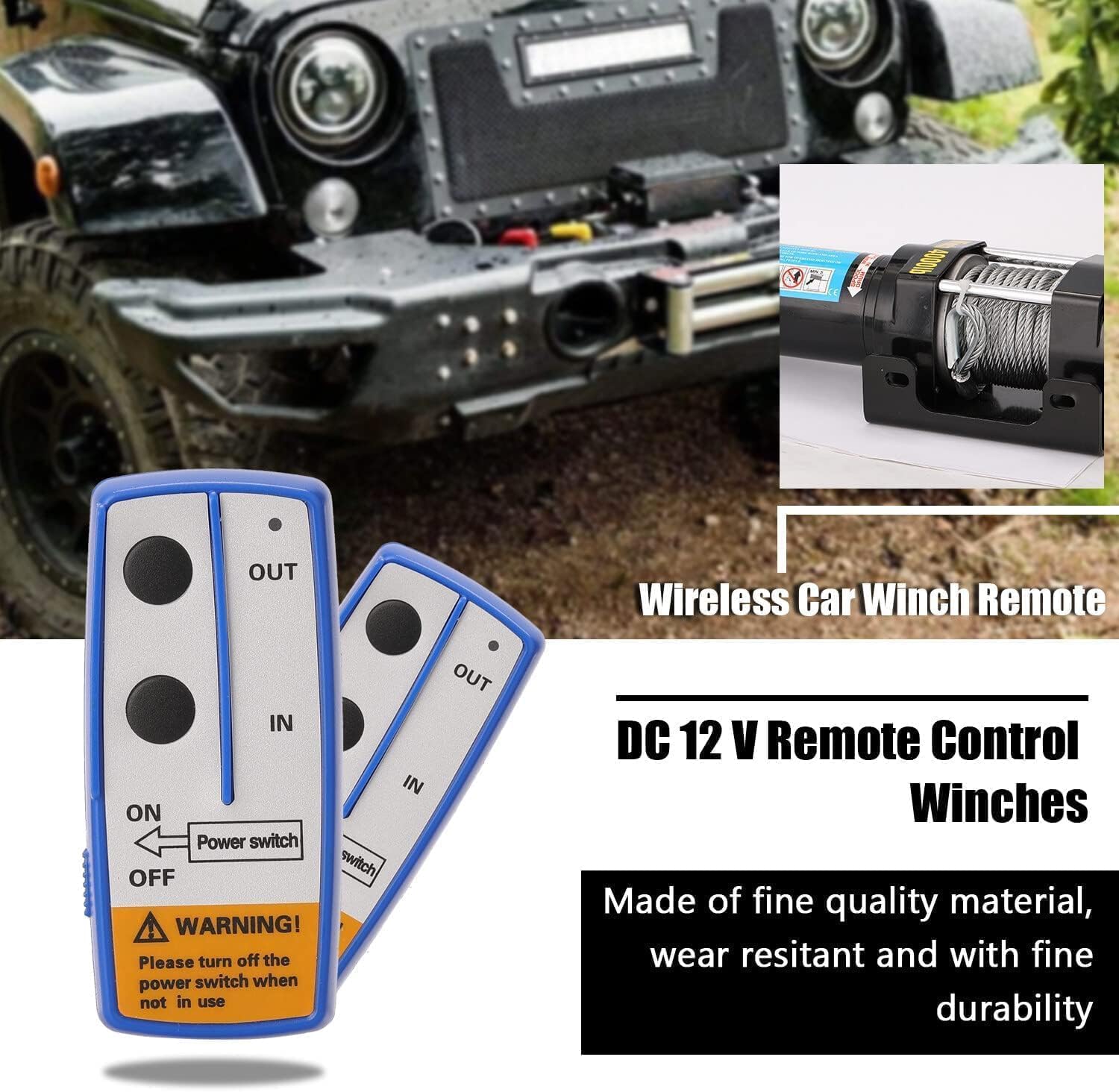

4000 Electric Recovery Winch Kit ATV Trailer Truck Car DC12V Remote Control Winches

Can be controlled by remote control, safe and convenient, and can provides superior winching control.

Easy to install, easy to operate, and easy to maintain.

Application: Used in ATV sports car, agricultural light vehicle, yachts, water recreation equipment, wild adventure vehicle, self-protection and traction, using rescue or self-help in snow, swamp, desert, beach, muddy mountain roads and other harsh environments.

Usage:

Ensure that the towing vehicle and the towed vehicle are in a straight line. The angled traction will offset the traction ability, and the second will cause the winch cable to be wound around one end.

If you cannot adjust the angle, you can use the directional pulley.

When dragging heavy objects or vehicle that are difficult to drag, the pulley block can be used to form a loop to increase traction.

In the process of dragging, a reasonable method should be used to fix the traction points, such as tires, eye-fixing, fixed body, skilled use of tools such as hold trees and spears.

Ensure the reliability of the clutch switch and avoids danger during rescue.

Specifications:

Rated Line Pull : 4000lb (1818kg)

Wire Rope: Wb5.5mm*15m 7/32"X 50'

Motor: 1.2kw, 1.66HP 12VDC Permanent Magnet

Gearing: Differential Planetary

Battery: 1 * 12 V, 2300mAh (included)

Gear ratio: 153:1

Remote control distance: max 50m/164.04ft

Drum diameter: 1.45"(37mm)

Drum length: 2.9"(72mm)

Item size: 300 * 110 * 105mm / 11.81 * 4.33 * 4.13ince

Package size: 330 * 230 * 190mm / 12.99 * 9.06 * 7.48in

Package weight: 8000g / 17.64lb

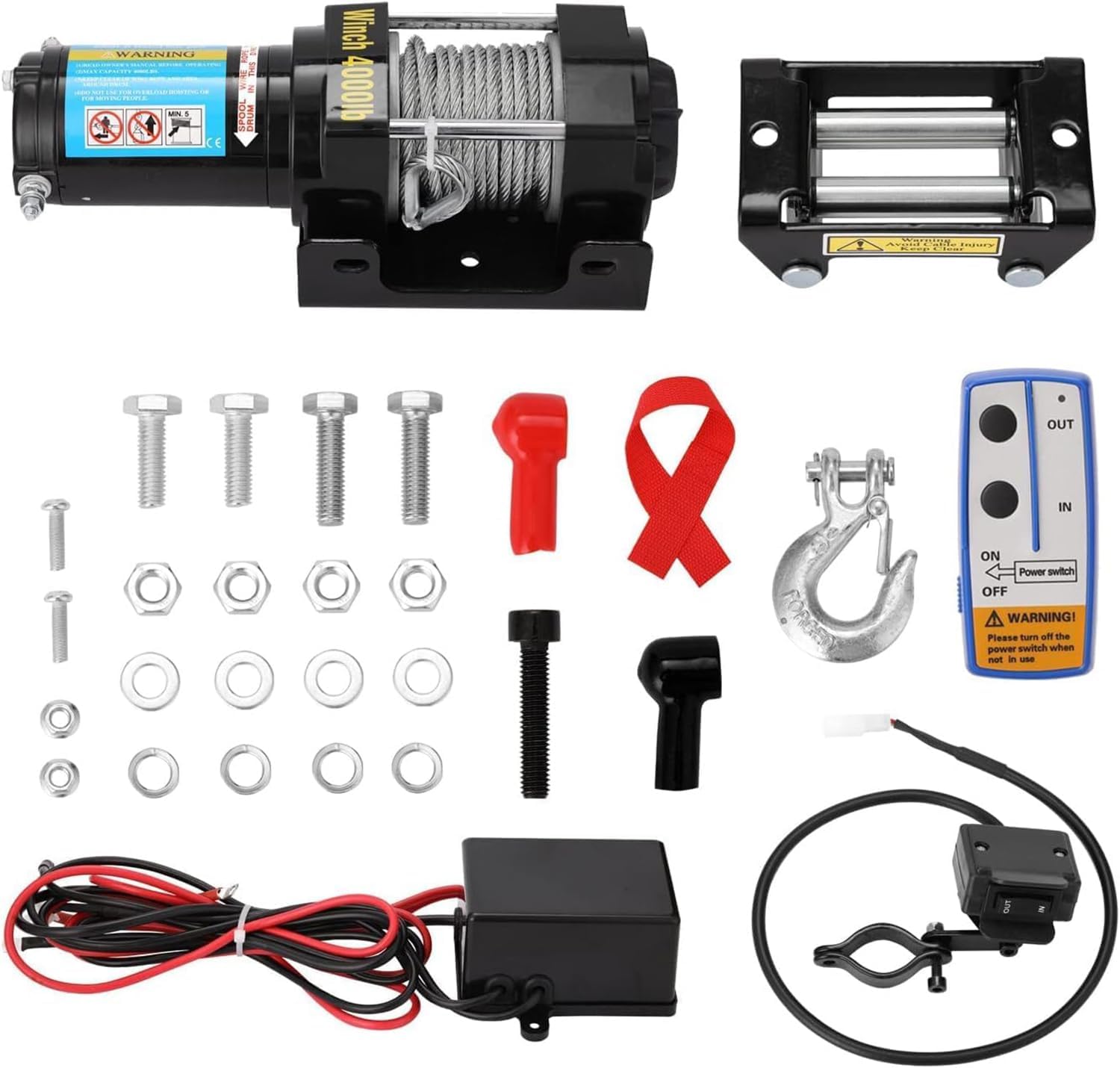

PackingList:

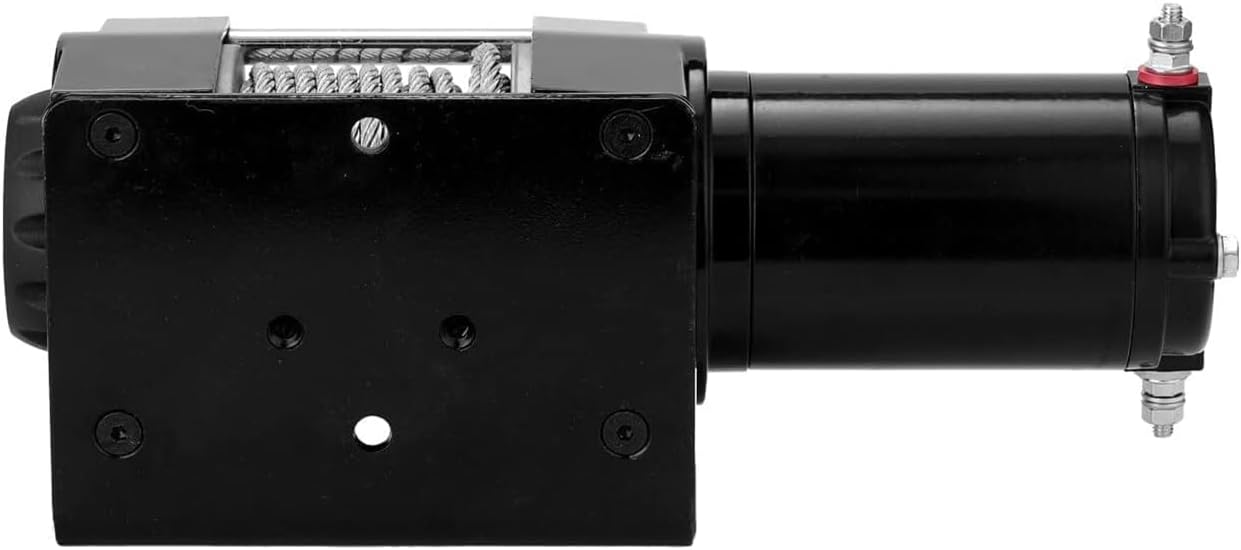

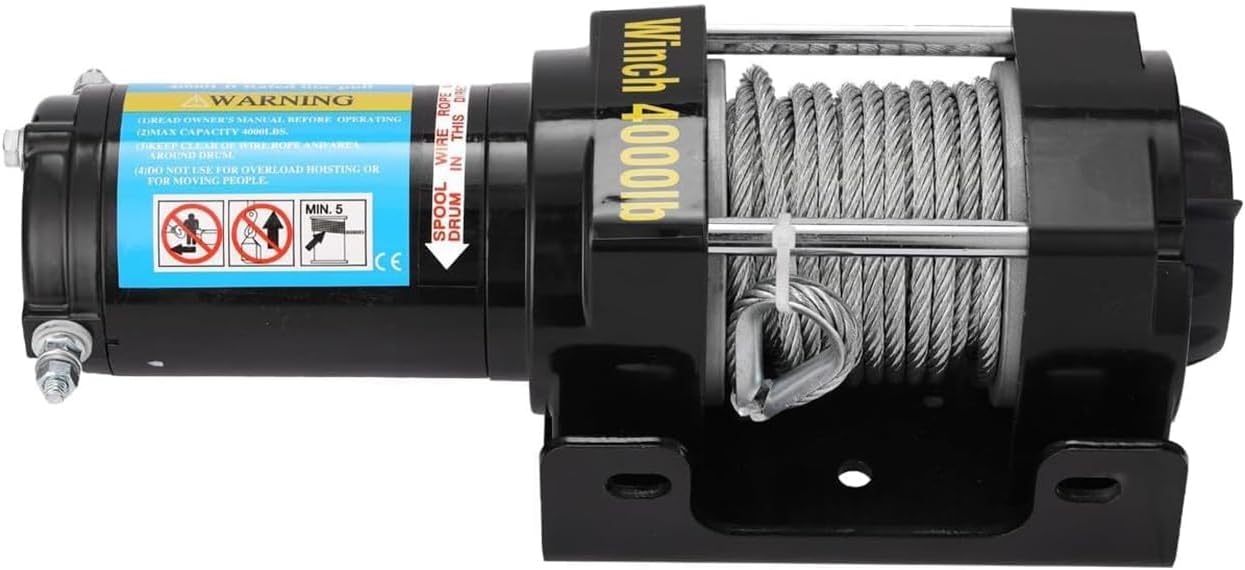

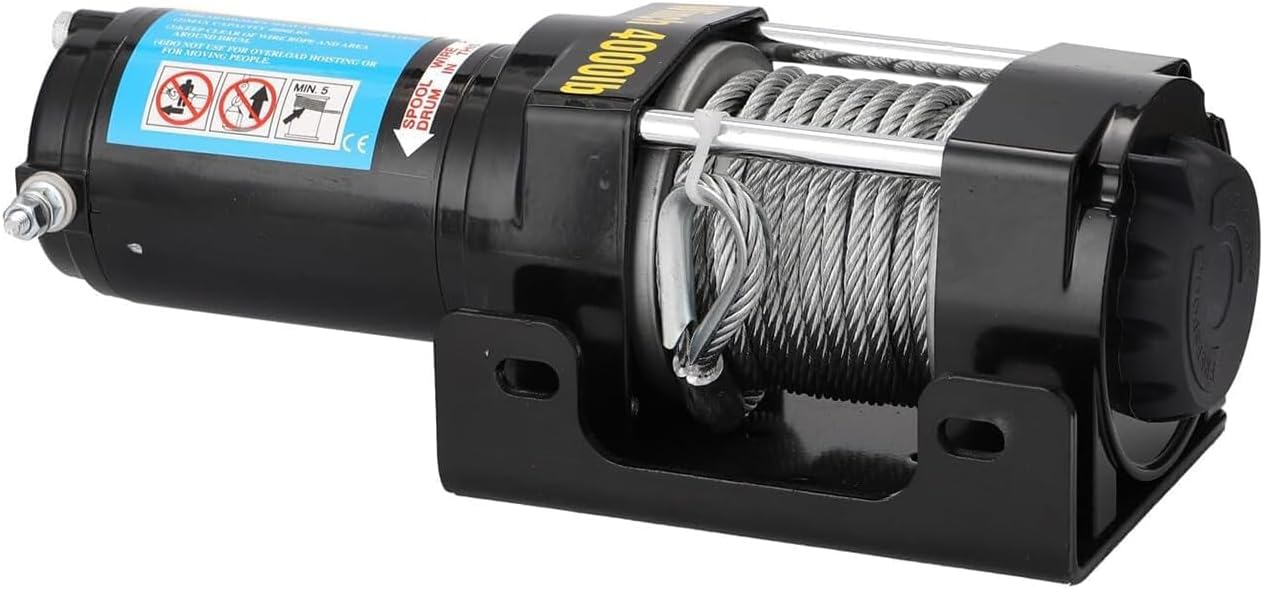

1 * Winch

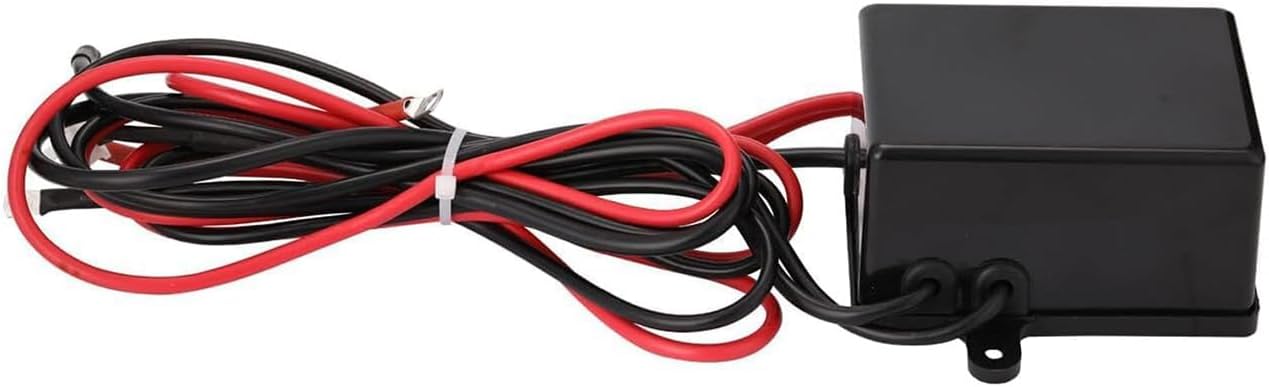

1 * Control box

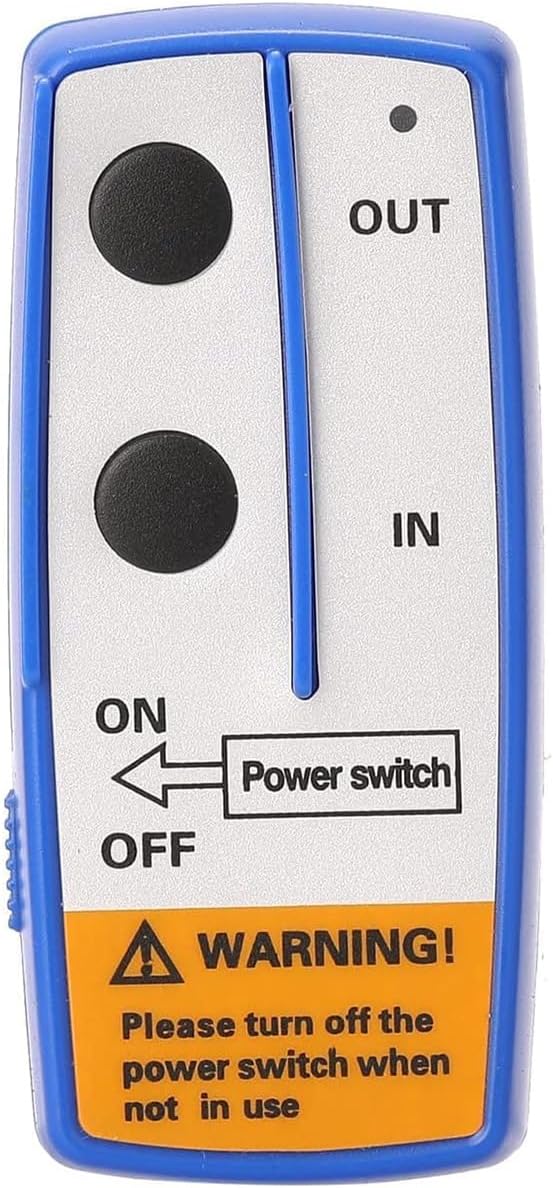

1 * Remote Control

1 * Screw

1 * Hook

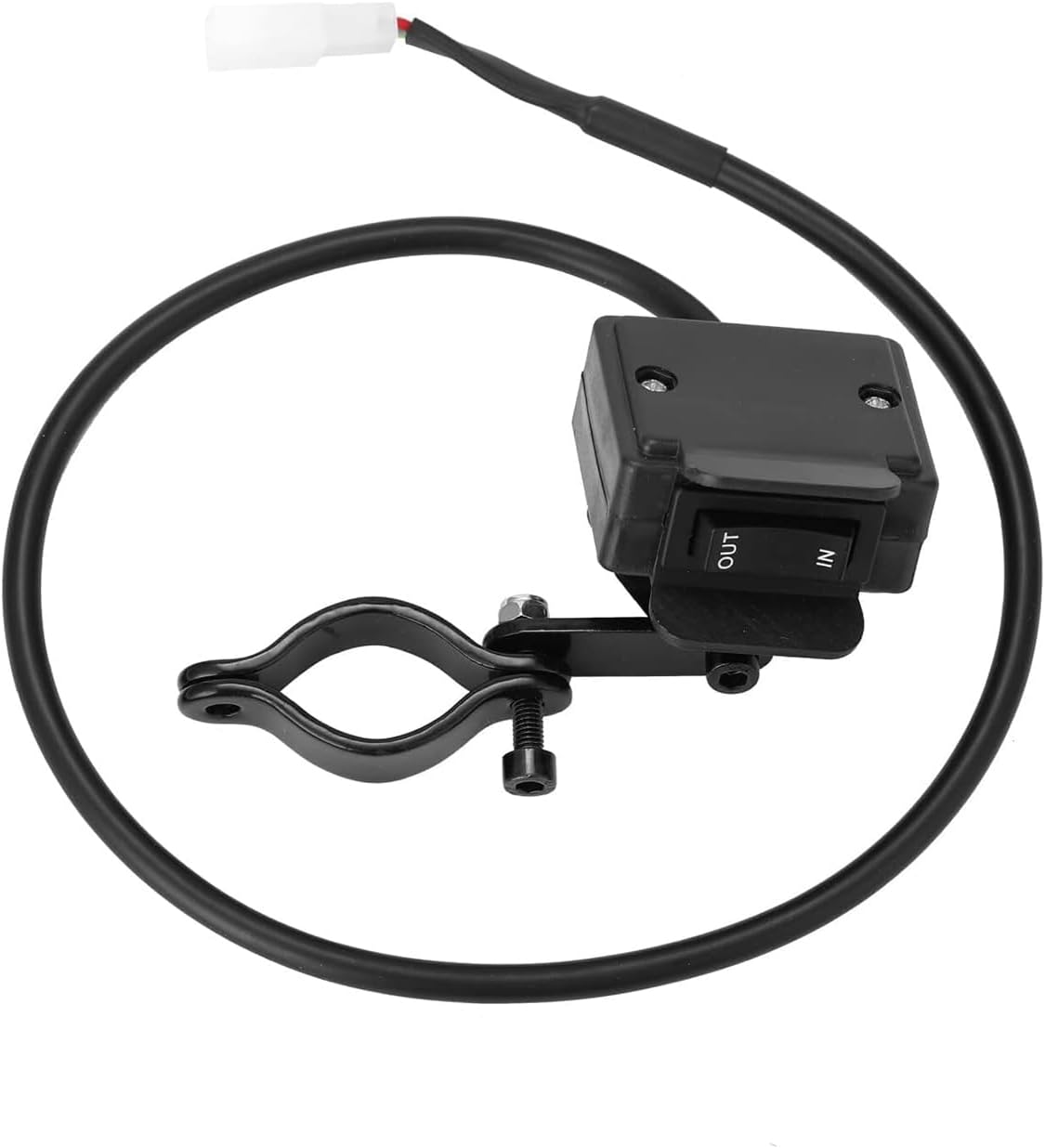

1 * Handle Control

1 * Ribbon

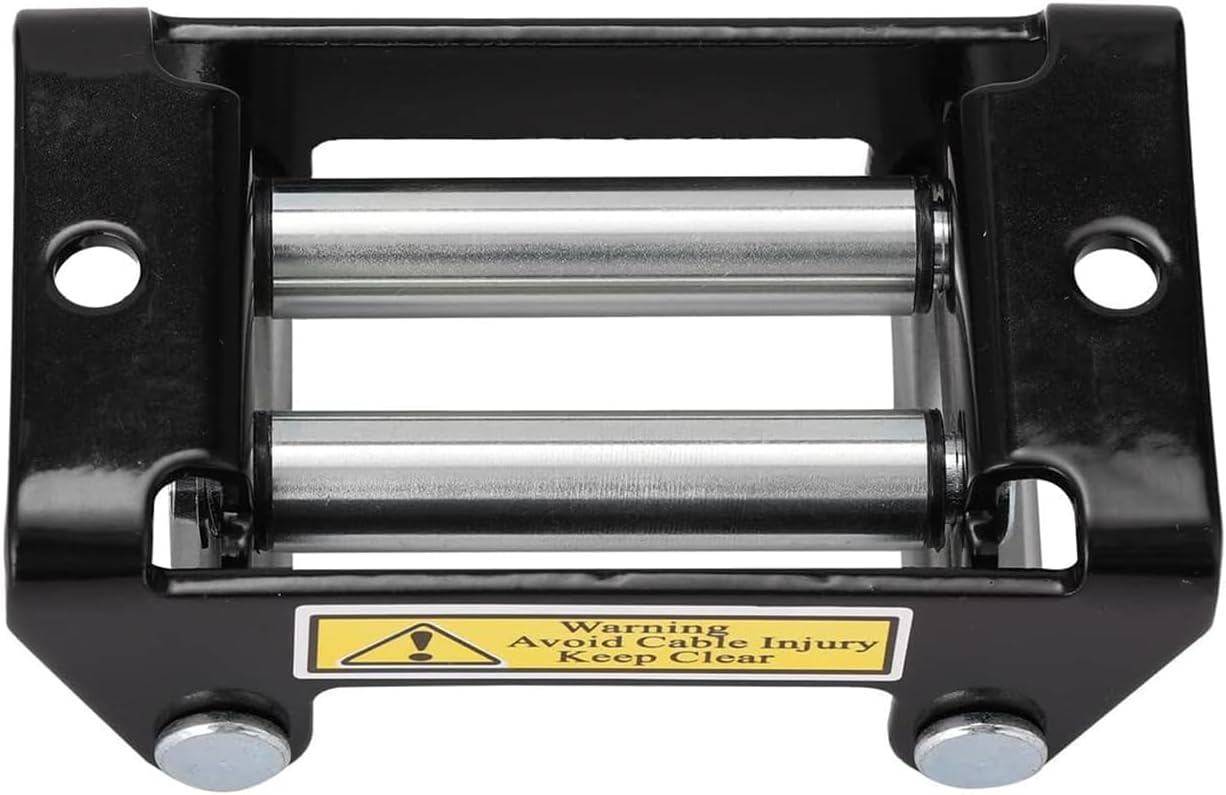

1 * Roller Fairlead

1 * Specification
